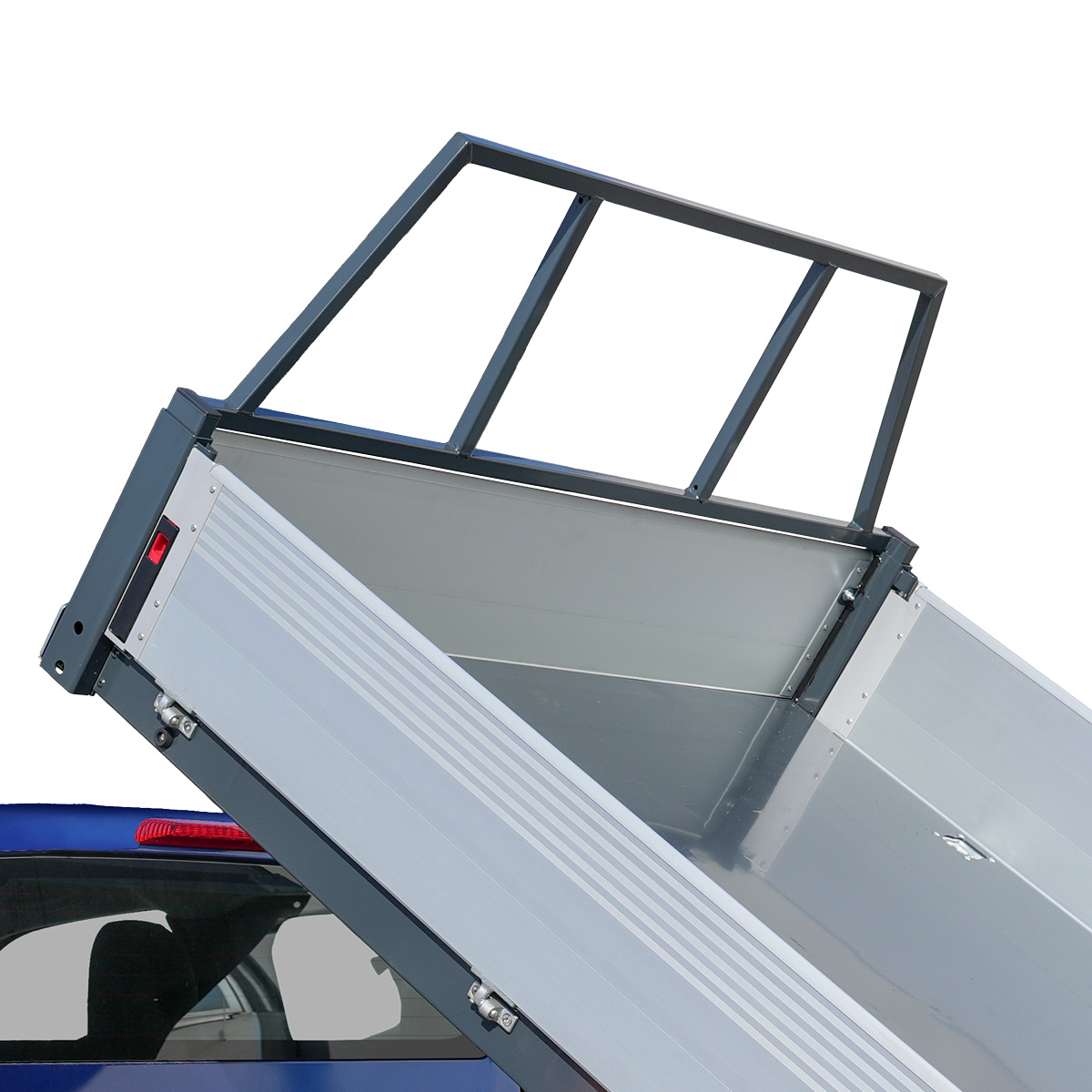

Steel rear tipper

WHEELBASE 3125 mm



Structure of the loading deck in single thick in steel sheet. 3 mm
Steel sub-frame
Aluminum front board from 300 mm with ladder rack steel painted
Anodized aluminium side boards from 300 mm with integrated handles
Anodized aluminium rear board from 300 mm
Front and rear pillars screwed

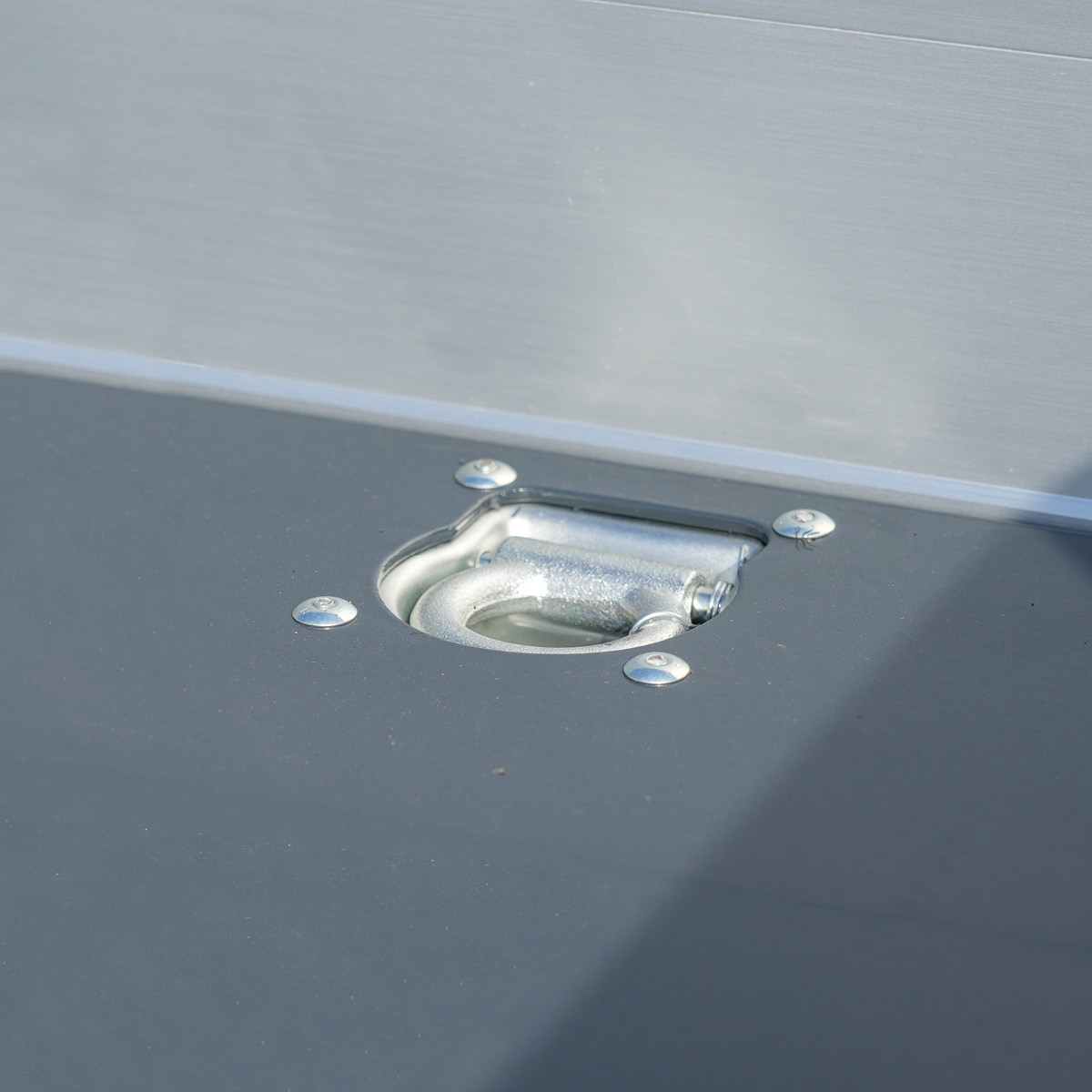

Recessed foldway rope stretching ring (2+2)
Thermoplastic mudguards
Tool box
Electro-hydraulic power pack with control panel into cab, isolation switch, safety fuse and buzzer
Chromed multistage under floor ram, wear resistant, weather resistant and rust resistant with safety valve
Underrun protection crossbar and approved towing preparation
Cataphoresis treatment and powder coating
Lights according to regulations


Price: € 5.750,00 Combinable vehicles

Code Boards External Dimensions
M 155 025 018 - 01 Flat aluminum 1890x1845 mm
Anodized aluminium sideboards from 300 mm top opening only
Anodized aluminium tailgate height 300 mm with double opening and automatic release

Combinable vehicles

Pic

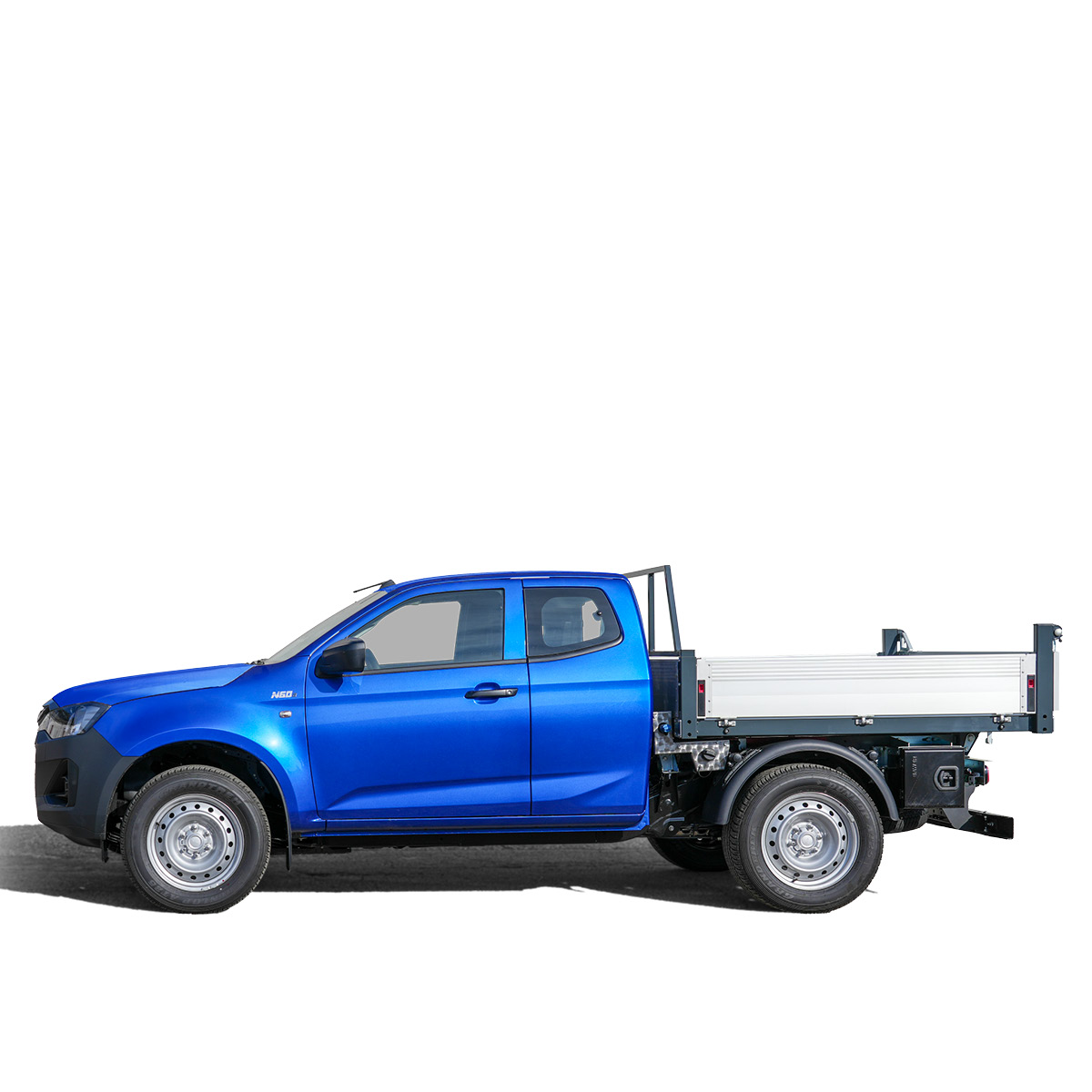

SPACE N60 B 4X4 A/T MY2024
Euro6e

(+) Payload: 878 Kg
Payload with towbar: 873 Kg

Pic
SPACE N60 BB + 4X4 A/T MY2024
Euro6e

(+) Payload: 855 Kg
Payload with towbar: 850 Kg

Pic
SPACE N60 BB+ A/T 4x4 MY2025
Euro6e

(+) Payload: 826 Kg
Payload with towbar: 821 Kg

Pic
SPACE N60 B A/T 4x4 MY2025
Euro6e

(+) Payload: 836 Kg
Payload with towbar: 831 Kg

(+) Towable mass= 3500
(-) Towable mass= 0 KG (it is not possible to install a towbar)
