Steel 3way tipper with retrocab storage box H. 1200 mm
WHEELBASE 3345
Loading deck structure in S355JR steel th. 3 mm
Steel subframe with horizontal spheres
Steel front board H. 400 mm with ladder rack and perforated protection panel
Side and rear boards H. 400 mm, available in steel
Front and rear pillars, screwed and removable with integrated foldaway
Removable rear ladder rack
Steel spheres supports with anti-vibration PVC cap
Thermoplastic mudguards
Tool box with key lock
Hydraulic system with P.T.O., safety fuse and buzzer

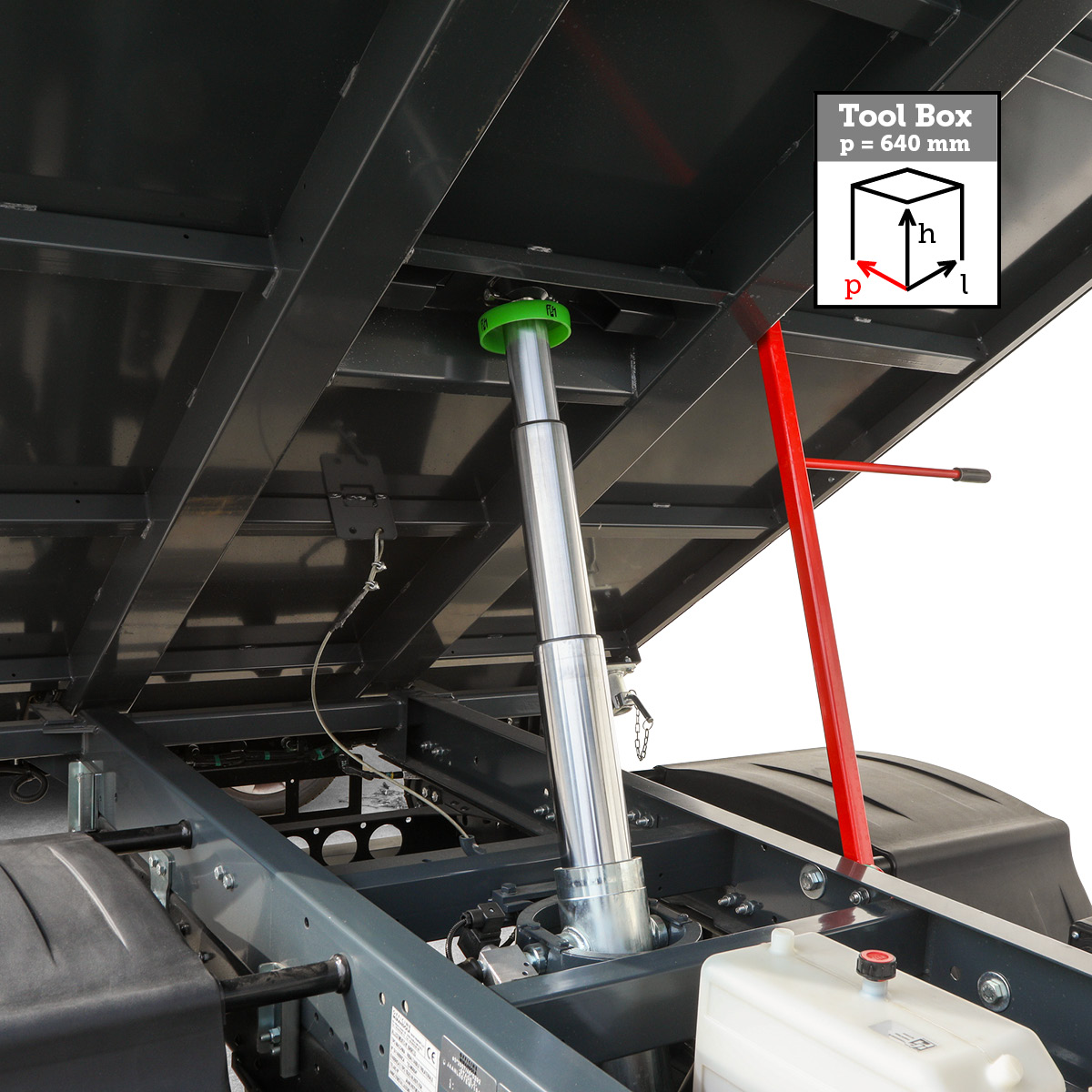

Chromed and galvanised multistage under floor ram, wear resistant, weather resistant and rust resistant with safety valve
Cataphoresis treatment and powder coating
Overall lights.

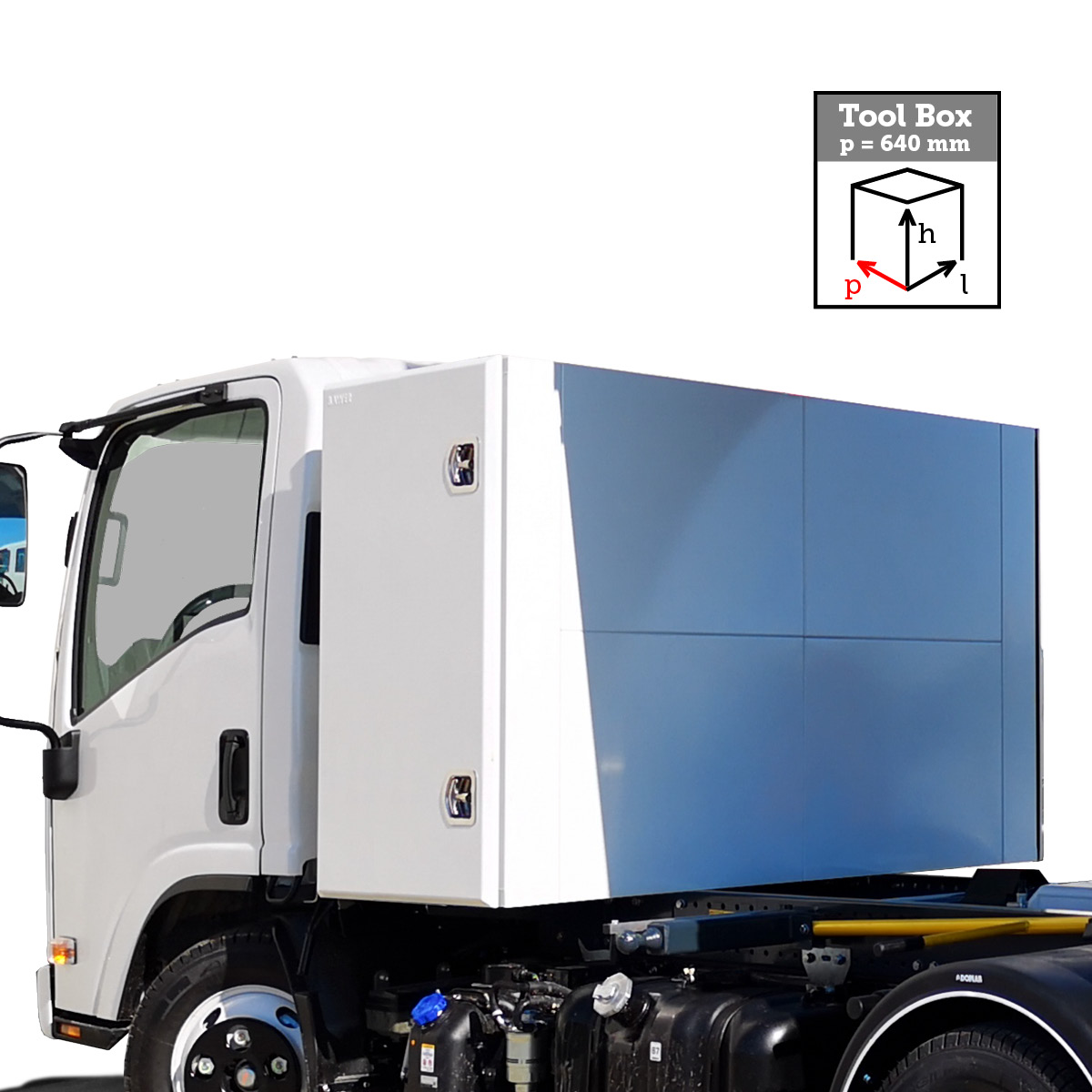

Supply and Mounting of retrocab storage box external dimensions: D=640 H=1200 L=1950 mm of 2 mm width steel, painted with epoxy powder white ISUZU colour, plastic internal carpet, aluminium hinges, central shelf bracket, double opening, euroinox locks.
* Available while stocks last with flat steel boards
Price: € 8.286,48 Combinable vehicles
| Code | Boards | External Dimensions |
|---|---|---|
| M 155 020 411* | Flat steel | 3400x1950 mm |
| Steel sideboards height 400 mm top opening only | ||
| Steel tailgate height 400 mm with double opening and automatic release | ||
